Original price was: ₹300.00.₹250.00Current price is: ₹250.00. exclude GST

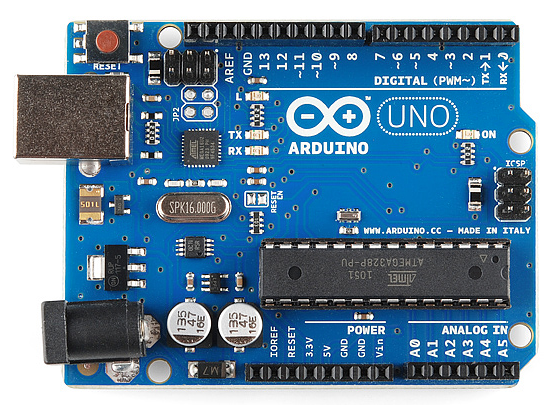

The Arduino Uno R3 with Cable is a microcontroller board based on the ATmega328 (datasheet). It has 14 digital input/output pins (of which 6 can be used as PWM outputs); 6 analog inputs, a 16 MHz ceramic resonator, a USB connection, a power jack, an ICSP header, and a reset button.
It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with an AC-to-DC adapter or battery to get started.
| Item Type: | Development Board |
|---|---|
| Board Type: | Uno |
| With Cable (Y/N): | Y |
| Operating Voltage (VDC): | 5 |
| Input Voltage (V): | 6-20V |
| Analog I/O Pins | 6 |
| Digital I/O Pins | 14 (of which 6 provide PWM output) |
| PWM Digital I/O Pins | 6 |
| DC Current per I/O Pin (mA) | 40 |
| DC Current for 3.3V Pin(mA) | 50 |
| Clock Speed | 16 MHz |
| SRAM | 2 |
| EEPROM | 1 KB (ATmega328) |
| Flash Memory: | 32 KB |
| Dimensions (L x W x H) mm | 75 x 54 x 12 |
| Weight (g): | 28 (without cable), 54 (with cable) |
| Shipping Weight | 0.08 kg |
| Shipping Dimensions | 9 × 6 × 4 cm |
